Date :  This work has begun during my B.S and M.Sc. (2003-2005) and is continued during my Ph.D. (2006  to now).

Description : This work consists of proposing a model for describing cognitive processes of student that perform problem-solving exercises using an intelligent tutoring system. The model is principally based on the ACT-R (Anderson, 1993) and Miace (Mayers, 2001) cognitive theories. It allows a tutoring system to closely follow the reasoning of learners to generate tailored assistance. This work is directly inspired by the work on Cognitive Tutors by Anderson et al. However, this work provides several originalities such as providing a better evaluation of declarative (semantic) knowledge and spatial knowledge (see project 2) [1,2] and incorporating ontologies for improving reusability of knowledge and building glass-box learning objects (see project 1) [3].

This work has resulted in a knowledge representation framework [1,2,3] comprising:

• knowledge structures for representing cognitive processes
• an interpreter to simulate cognitive processes described with the knowledge structures
• a model-tracer that use the interpreter for determining what a learner is actually doing according to the knowledge structures.

Applications of the current version of the framework

• RomanTutor, a tutoring system for learning to operate the Canadarm2 robotic arm on the international space station (figure 1) (P. Fournier-Viger, R. Nkambou & A. Mayers, 2007-2008).
• the second version of an authoring tool for the knowledge structures (figure 2) (P. Fournier-Viger, 2007)
• the second version of Redbool, a tutoring system for learning to reduce boolean expressions (figure 3) ([1], 2005-2006)

Fig 1. The RomanTutor Tutoring System

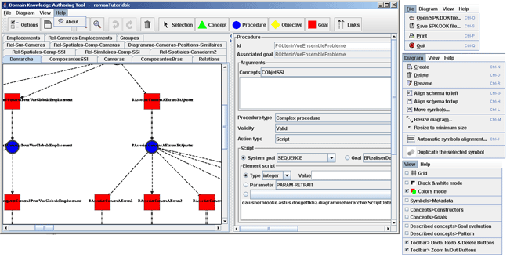

Fig 2. The Second Version of the Authoring Tool

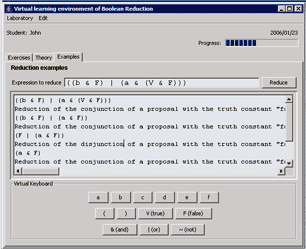

Fig 3. The Second Version of the Redbool Tutoring System

Applications of earlier versions of the framework

Earlier versions of the knowledge structures and interpreter have been designed with André Mayers and have been described in my M.Sc. Dissertation (P. Fournier-Viger, 2005). They have been used in several projects including:

• an early version of the GNT tutoring system (figure 4) for learning to perform restriction, digestion and reconstructing DNA in a genetic lab (X. Zhao, M.Sc. 2004)
• an early version of Redbool (figure 5) (M. Najjar, P. Fournier-Viger, A. Mayers et al., 2003-2004)
• the first version of the authoring tool for the knowledge structures (M. Najjar, P. Fournier-Viger et al., 2005)
• TiramisuSimulation, a cognitive simulation of a person cooking a tiramisu that is being interrupted during the task (figure 6) (M. Najjar, P. Fournier-Viger, J.F. Lebeau et al., 2006)
• an early version of ACCC, a tutoring system for DC Circuit Analysis (figure 7) (A. Abdessemed, J.F. Lebeau et al., 2006).

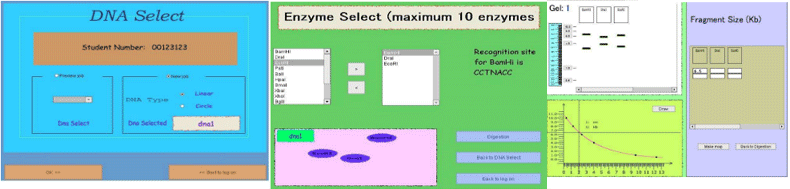

Fig 4. An Early Version of the GNT Tutoring System

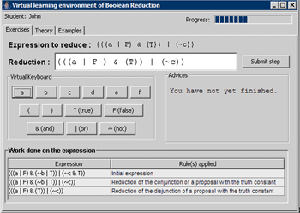

Fig 5. An Early Version of the Redbool Tutoring System

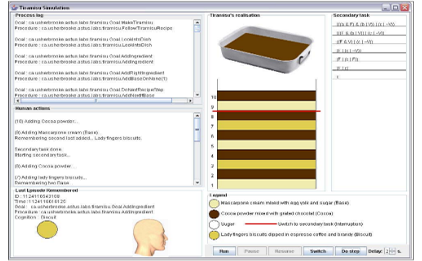

Fig 6. A Cognitive Simulation of the Realisation of a Tiramisu Cake

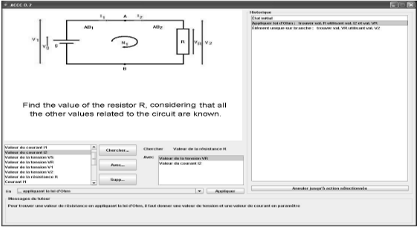

Fig 7. An Early Version of a Tutoring System for DC Circuit Analysis

Main publications

[1] Fournier-Viger, P., Nkambou, R. & Mayers, A. (2008). Evaluating Spatial Representations and Skills in a Simulator-Based Tutoring System. IEEE Transactions on Learning Technologies, vol. 1, no. 1, pp. 63-74, Jan-Mar, 2008.

[2] Fournier-Viger, P., Nkambou, R. & Mayers, A. (2008), A Framework for Evaluating Semantic Knowledge in Problem-Solving-Based Intelligent Tutoring Systems. Proceedings of the 21th International Florida Artificial Intelligence Research Society Conference (FLAIRS 2008). AAAI press, pp. 409-414.

[3] Fournier-Viger P., Najjar, M., Mayers, A. & Nkambou, R. (2006). A Cognitive and Logic based Model for Building Glass-box Learning Objects. Interdisciplinary Journal of Knowledge and Learning Objects, Vol. 2. pp: 77-94.

The RomanTutor is a software program developped by the GDAC and PLANIART research team with the logistic and financial support of the Canadian Space Agency, FQRNT and the NSERC.
